- Anton Bauer Gold Mount Plate with 2 Batteries & Charger Kit for Blackmagic
Anton Bauer Gold Mount Plate with 2 Batteries & Charger Kit for Blackmagic
The Anton Bauer Gold Mount Plate with 2 Batteries & Charger Kit for Blackmagic, combines two batteries and a two position charger with a plate designed specific to the Blackmagic camera's power input. Altogether, the four items provide a non-stop power solution for the camera. One battery can be swapped for the other, and the camera's internal 90 minute battery will kick in during the swap.

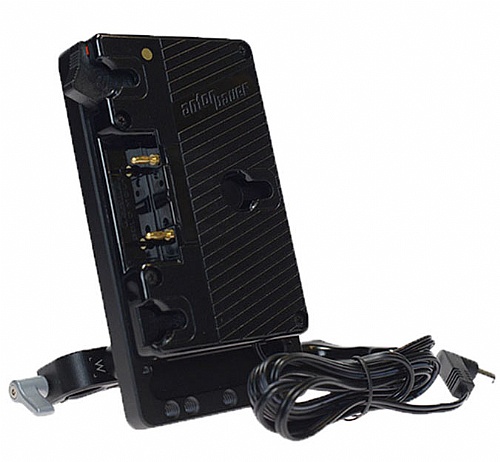

The Gold Mount plate features a right-angled 2.5mm unregulated DC connector on a 2 ft integrated cable. For powering accessories simultaneously with the camera, the plate has two P-Tap outputs. The Blackmagic camera, with its minimalist design, has no space to mount a plate. To compensate for this, the plate attaches to a rig via an optional cheese plate, which can then be mounted on to 15 and 19mm rods.

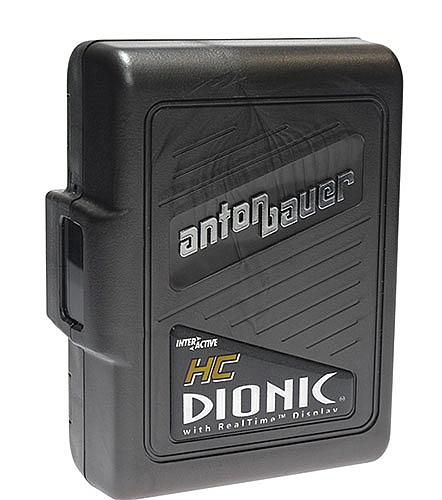

The two batteries included are Anton Bauer's DIONIC HC 14.4V batteries. They each have a 91 Wh peak capacity, and could each power the camera for about four hours, unless you're shooting 2.5K raw, which requires more power.
The charger can charge any two Gold Mount Logic Series batteries at the same time, and does so in three stages. Stage one delivers a high-rate charge that matches a battery's chemistry and capacity, stage two equalizes any imbalance of a battery's cells, and stage three keeps a battery from self-discharging without causing any damage.

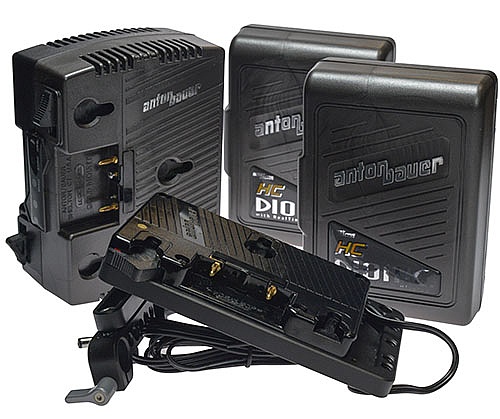

Rental Package Includes: 2 x DIONIC-HC Lithium-Ion Battery, TWIN 60-watt Two Position Portable Quick Charger & Cable. Gold Mount Plate attached to a Wooden Camera Cheese Plate for the Black Magic Cinema Camera
Gold Mount Plate for Blackmagic Cinema Camera
- Outputs 2.5 mm DC connector, unregulated 2x P-Tap
- Mount Type Compatible with Anton Bauer Matrix cheese plate and 3rd party rod-mount cheese plates
- Cable Length 2 ft (61 cm)
- Chemistry Lithium-Ion
- Output Voltage 14.4VDC
- 12 - 16.8VDC (operating)
- Connection Anton Bauer Gold Mount
- Capacity 91 Wh (Peak)
- 83 Wh (Typical)
- Weight 1.8 lbs (800g)
- Dimensions (WxHxD) 4.06 x 5.46 x 2.34" (10.3 x 13.87 x 5.94 cm)

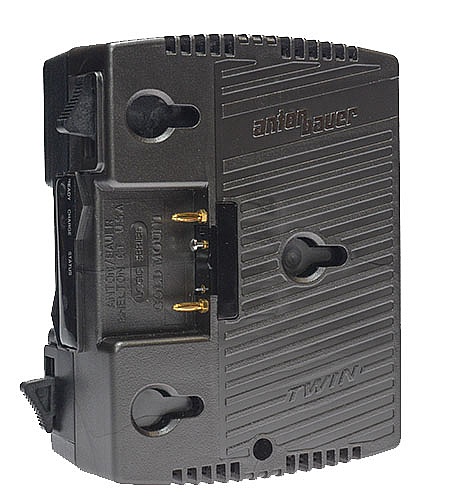

TWIN 60-watt Two Position Portable Quick Charger
- Power Supply No
- Battery Bays 2
- Type of Charging Simultaneous
- Diagnostics Automatic Charge Termination
- Lifesaver Maintenance Routine
- Connections/Interface Gold Mount Type (x 2)
- Power Requirements 90-250 Volts AC, 50 or 60 Hz
- Dimensions (WxHxD) 5 x 5.7 x 2.3 inches
- 127 x 145 x 58 mm
- Weight 16.8 oz.
