- Load Capacity 8.82 lbs (4kg)
- Diameter/Thread 3/8" Female Thread
- Counter Balance System Fixed counter-balance spring @ 1.5kg
- Counter Balance Range 58mm
- Center of Gravity Not specified by manufacturer
- Quick Release/Wedge Plate Yes 501PL
- Balance Plate Fixed, 1/4" Screw and Locating Pin
- Tilt Drag Fluid Cartridge with Fixed Drag
- Tilt Range -60/+90°
- Tilt Lock Yes
- Spring Loaded Counter Balance 1 Fixed
- Pan Range 360°
- Pan Lock Yes
- Leveling Bubble/Illuminated Yes / No
- Temperature Range -10°C / 60°C
- Height 3.7"
- Weight 1.8 lbs (0.83kg)

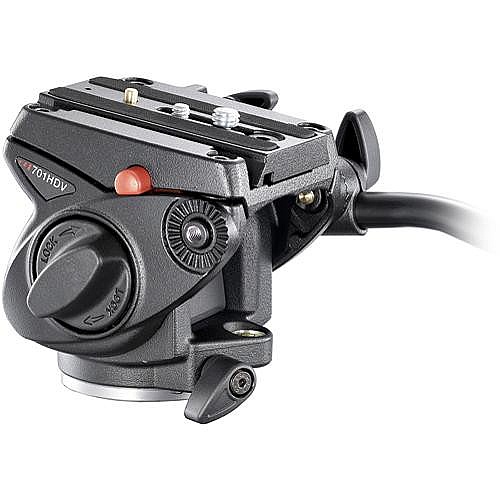

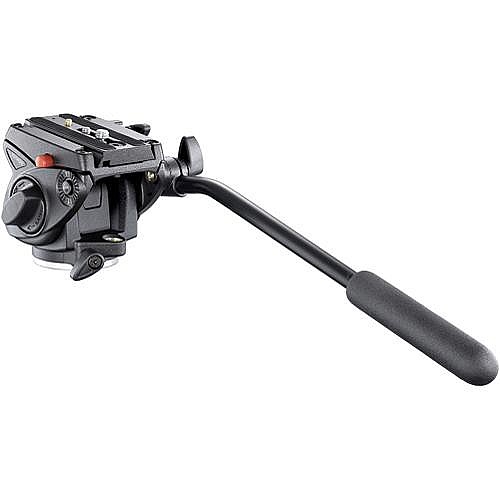

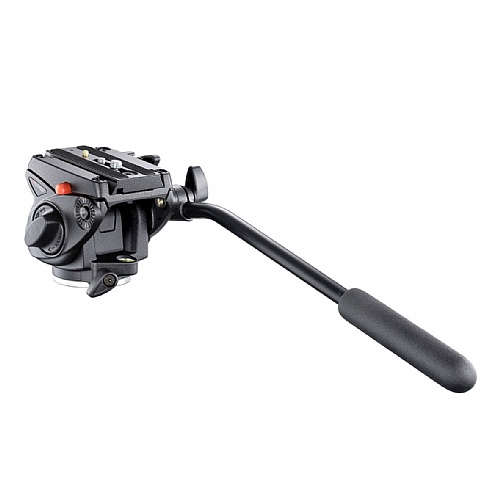

Small and lightweight, the Manfrotto 701HDV Pro Fluid Video Mini Head is capable of accommodating payloads up to 8.82 lbs (4kg), and was designed principally to support the latest compact digital video equipment, including MiniDV and prosumer/professional-grade HD camcorders.
Ergonomics The 701HDV has locks and knobs that allow for a more solid grip and better control. This head offers updated fluidity from improved internal fluid cartridges.
This small head offers a double pan-bar rosette and a bigger sliding plate for better center of gravity adjustments.
